| Specifications： | |
| Throat Diameter: | 1.0in (25mm) |
| Mounting Type: | Screw on 1 3/8 ″ or Bolt-on |
| Nominal Impedance: | 4 / 8 / 16 ohm |
| Power Capacity: | 25Watts RMS |
| Sensitivity (1W/1M): | 106dB (mounted on BL412 horn) |

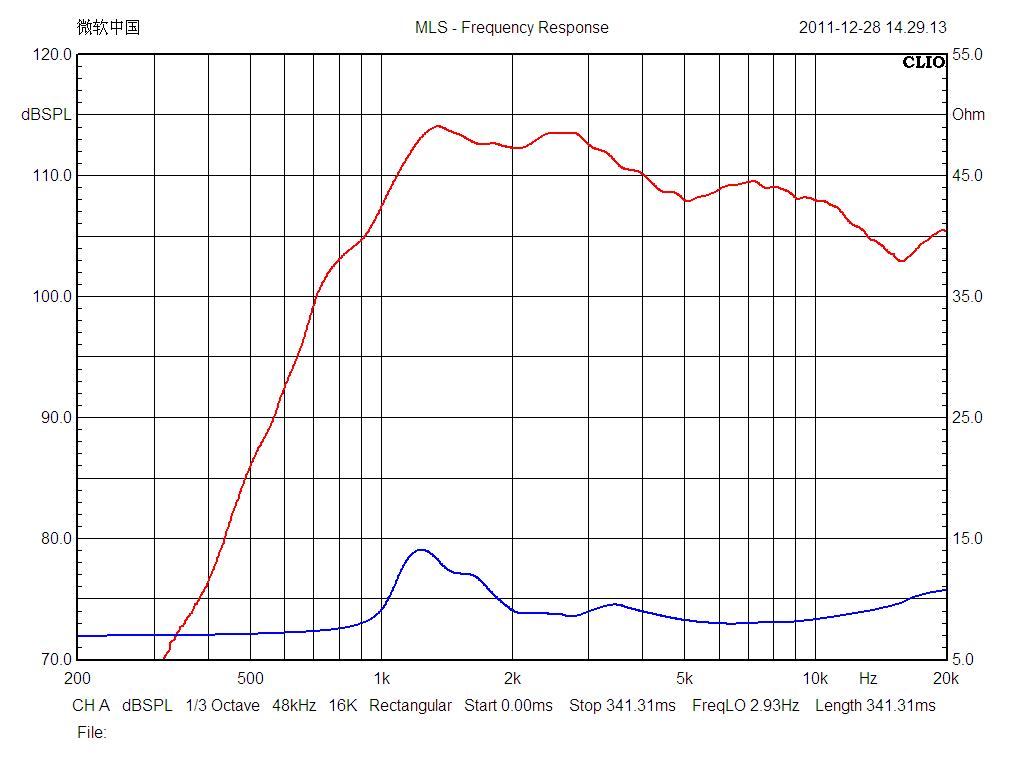

| Frequency Range: | 1.5KHz - 20KHz |
| Diaphragm Material: | Titanium |
| Voice Coil Diameter: | 1.10in (28mm) |
| Voice Coil Material: | Round & Ribbon Aluminum Wire |
| Flux Density: | 1.5T |
| Magnet Material: | Strontium Ferrite |
| Packing Details: | |
| Overall Diameter x Depth: | Ф 80mm x 63mm |
| Net Weight: | 0.83kg |
