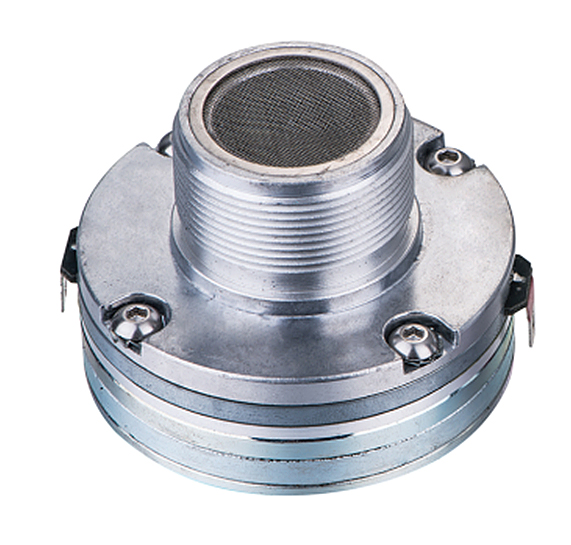

Specifications：

• Throat Diameter:       1in(25mm)

• Mounting Type:          Screw on 1-3/8”

• Nominal Impedance:  8 ohm

• Power Capacity:        30Watts RMS (pink noise signal -12db/OCT)

• Sensitivity(1W/1M):  107dB(mounted on JC H-613 horn)

• Frequency Range:      1.5-20KHz

• Diaphragm Material:  PPS

• Voice Coil Diameter:  1.5in(38mm)

• Voice Coil Material:    Round or Ribbon Aluminium Wire

• Flux Density:              1.8T

• Magnet Material:       Neodymiun N-38H

Packing Details:

• Overall Diameter:  ф64mm(2.52in)

• Depth:                    48.5mm(1.9in)

• Net Weight:           2.9kg

• Pcs/CTN:               12 Pcs
